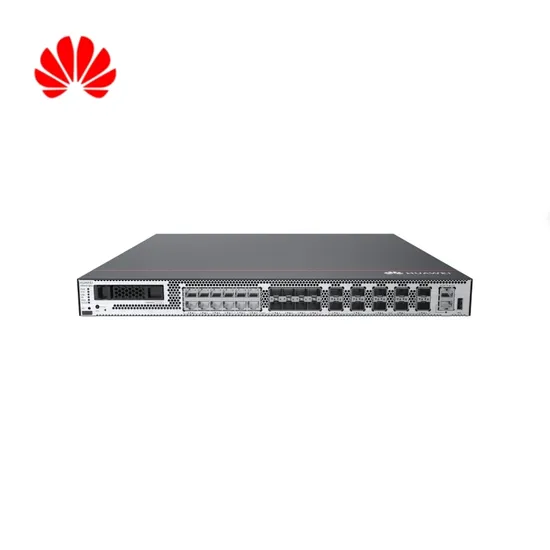

Advanced USG6635F-AC Network Switch For High-Speed Data Transfer Firewall

Advanced USG6635F-AC Network Switch For High-Speed Data Transfer Firewall — a firewall appliance supplied by GNX Systems for enterprise and business IT infrastructure deployments in Dubai, UAE. Model/part reference: USG6635F-AC. Contact GNX Systems for full technical specifications, compatibility details, warranty terms, and a competitive quote.

Key Specifications:
Installation Type: Rack
Cabinet installation standard: Cabinet with a depth of 600 mm or above
Wide [mm]: 442 mm
Depth [mm]: 420 mm
Height [mm]: 43.6 mm
Chassis height [U]: 1
Weight without packaging [kg(lb)]: 7.3 (16.09)
Weight with packaging [kg(lb)]: 10.3 (22.71)
Maximum power consumption [W]: 242
Maximum heat dissipation [BTU/hour]: 825.7
Heat dissipation mode: The fan module locates at the air exhaust of the system.
Power supply mode: AC built-in
Rated input voltage [V]: – AC: 100 V to 240 V, 50 Hz/60 Hz – High-voltage DC: 240 V, DC
Input voltage range [V]: – AC: 90 V to 290 V, 45 Hz to 65 Hz – High-voltage DC: 190-290 V, DC
Maximum output power [W]: 600
Maximum input current [A]: 8
CPU: 1 CPU, 16 Cores/CPU, up to 2.0 GHz
Memory: DDR4 32GB with ECC
NOR Flash: 64MB
NAND Flash: 4 GB
Hard disk: Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB) from HW based on the site requirements. The hard disk is hot swappable.
Redundant power supply: 1+1
Redundant fans: 3+1
Number of power modules: 2
Number of fan modules: 4
Types of fans: Pluggable
Noise at normal temperature (acoustic power) [dB(A)]: ≤72 dB(A)
Airflow direction: Air intake vent from front and air outlet from rear.
Long-term operating temperature [°C(°F)]: Without hard disk driver: 0°C to 45°C With hard disk driver: 5°C to 40°C
Storage temperature [°C(°F)]: -40°C to 70°C
Long-term operating relative humidity [RH]: 5% RH to 95% RH, non-condensing
Storage relative humidity [RH]: 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]: Without hard disk driver: 0 m to 5000 m With hard disk driver: 0 m to 3000 m
Console port: RJ45
Eth Management port: RJ45
Maximum number of 10GE ports: 10
Maximum number of GE ports: 8
The USG6635F-AC is a high-performance network switch with integrated se
