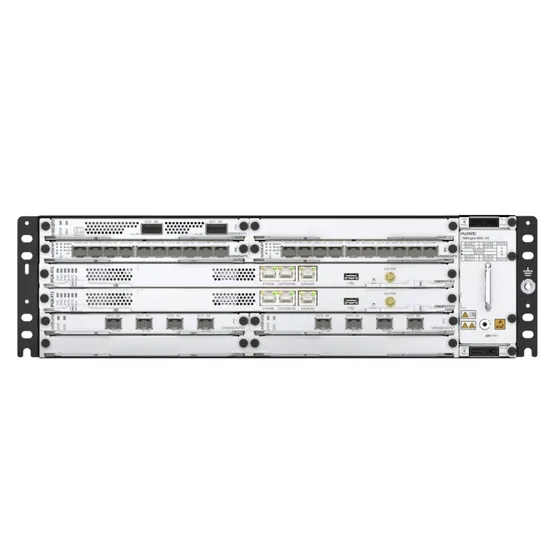

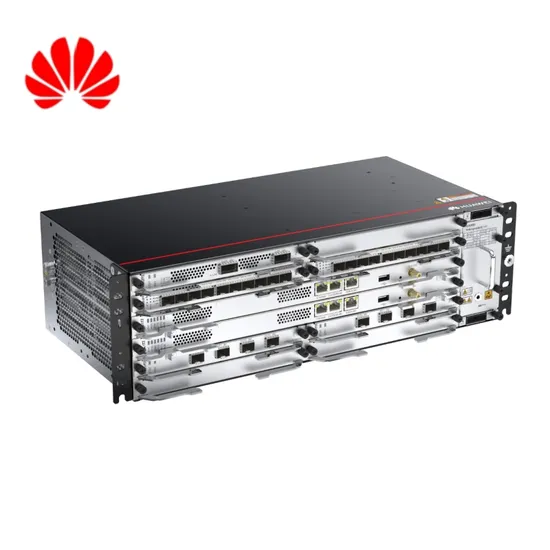

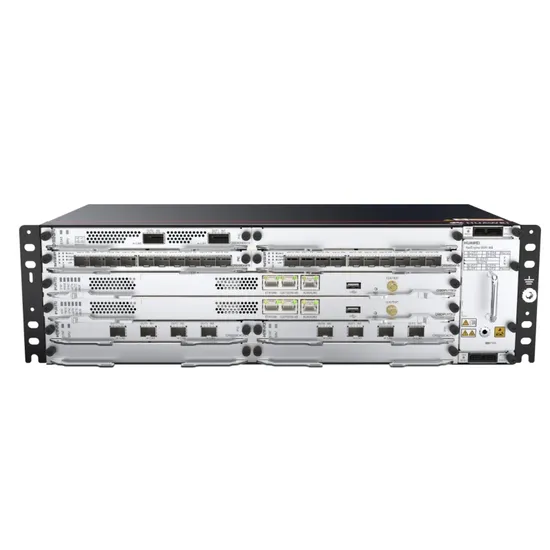

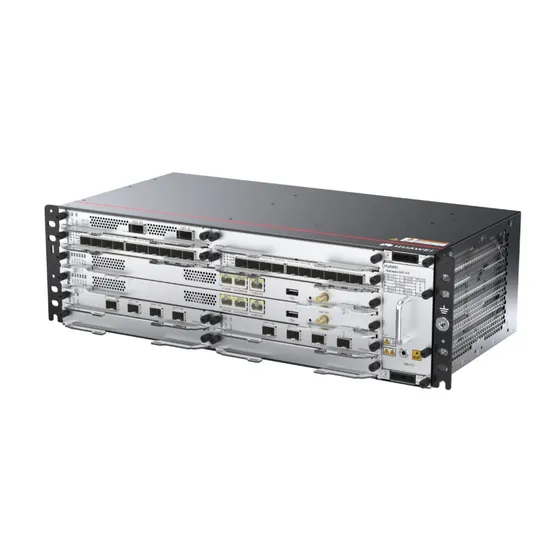

NetEngine 8000 M1C High-Performance Router For Seamless Connectivity

NetEngine 8000 M1C High-Performance Router For Seamless Connectivity — a IT accessory supplied by GNX Systems for enterprise and business IT infrastructure deployments in Dubai, UAE. Model/part reference: NetEngine 8000 M1C (V800R024). Contact GNX Systems for full technical specifications, compatibility details, warranty terms, and a competitive quote.

Key Specifications:
Cabinet installation standards: ETSI (21-inch); IEC (19-inch); IMB (3U)
Dimensions without packaging (H x W x D) [mm(in.)]: 44.5 mm x 442 mm x 220 mm (1.75 in. x 17.40 in. x 8.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)]: 255 mm x 585 mm x 390 mm (10.04 in. x 23.03 in. x 15.35 in.)
Chassis height [U]: 1U
Weight without packaging [kg(lb)]: 3.8 kg (8.38 lb)
Weight with packaging [kg(lb)]: 6.0 kg (13.23 lb)
Typical power consumption (with configuration) [W]: 88.98 W
Typical heat dissipation (with configuration) [BTU/hour]: 288.69 BTU/hour
Availability: 0.99999
CPU: 8-core 1.5 GHz
SDRAM: 4 GB
Flash memory: 64 MB
Storage: 8 GB
Power supply mode: DC
Rated input voltage [V]: -48 V/-60 V
Input voltage range [V]: -40 V to -72 V
Maximum input current [A]: 10 A
Rated output power [W]: 260 W
Maximum input cable size [mm²]: 4 mm²
Front-end circuit breaker/fuse [A]: ≥ 4 A
Heat dissipation mode: Air cooling
Airflow direction: From left to right
Noise at normal temperature (acoustic power) [dB(A)]: 55 dB(A)
Switching capacity: 344 Gbit/s (Bidirectional)
Maximum number of physical ports on the entire device: 28
Maximum number of 10GE ports: 16
Maximum number of GE ports: 28
Maximum number of FE ports: 28
Maximum number of electrical ports: 4
Redundant power supply: 1+1
Redundant fans: Three built-in fans. If one fan fails, the system can run at a maximum ambient temperature of 50°C for a short period of time.
Long-term operating temperature [°C(°F)]: -40°C to +65°C (-40°F to +149°F)
Restriction on the operating temperature variation rate [°C(°F)]: ≤ 0.5°C/min (32.9°F/min), non-condensing
Storage temperature [°C(°F)]: -40°C to +70°C (-40°F to +158 °F)
Long-term operating relative humidity [RH]: 5% RH to 95% RH (non-condensing)
Short-term operating relative humidity [RH]: 5% RH to 95% RH, non-condensing
Storage relative hu
