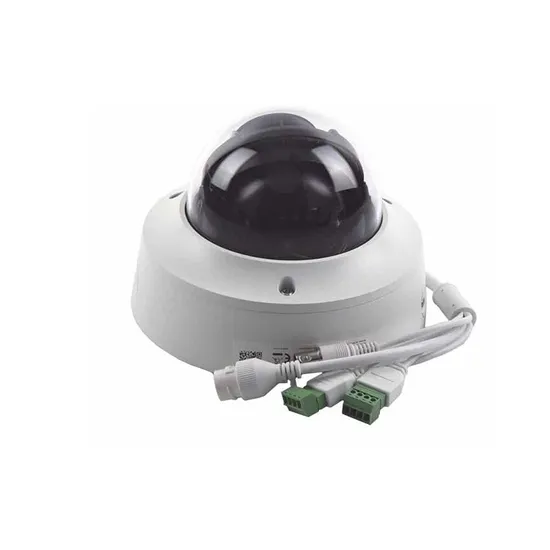

DS-2CD2743G2-IZS New 4 Mp Acusense Motorized Varifocal Dome Network Camera

DS-2CD2743G2-IZS New 4 Mp Acusense Motorized Varifocal Dome Network Camera — a networking equipment supplied by GNX Systems for enterprise and business IT infrastructure deployments in Dubai, UAE. Model/part reference: DS-2CD2743G2-IZS. Contact GNX Systems for full technical specifications, compatibility details, warranty terms, and a competitive quote.

Key Specifications:
Camera Image Sensor1/3″ Progressive Scan CMOS Max. Resolution2688 × 1520 Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on Shuer Time1/3 s to 1/100,000 s Day & NightICR Cut Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm Focal Length & FOV2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4° Lens MountØ14 Iris TypeFixed ApertureF1.6 DORI DORI2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m Illuminator Supplement Light TypeIR Supplement Light RangeUp to 40 m Smart Supplement LightYes IR Wavelength850 nm Video Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Bit Rate ControlCBR/VBR Scalable Video Coding (SVC)Yes Region of Interest (ROI)1 fixed region for main stream and sub-stream Audio Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3) Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise FilteringYes Network ProtocolsTCP/IP, ICMP, HP, HPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Live ViewUp to 6 channels APIONVIF (Profile S, Profile G), ISAPI, SDK User/HostUp to 32 users. 3 user levels: administrator, operator and user SecurityPassword protection, complicated password, HPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HP/HPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) ClientiVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Image Image Parameters SwitchYes Image SeingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night SwitchDay, Night, Auto, Schedule Wide Dynamic Range (WDR)120 dB SNR≥ 52 dB Image EnhancementBLC, HLC, 3D DNR Interface Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port On-Board StorageBuilt-in microSD, up to 512 GB Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA) Reset KeyYes Event Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Line crossing detection, intrusion detection Supports human and vehicle targets classification Face detection LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email General Power 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W Material Upper cover and base: metal Bubble: plastic DimensionØ153.3 × 111.6 mm (Ø6.1″ × 4.4″) Package Dimension244 × 174 × 173 mm (9.7″ × 6.9″ × 6.9″) WeightApprox. 880 g (1.9 lb.) With Package WeightApprox. 1419 g (3.1 lb.) Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter Approval EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Why Buy from GNX Systems?
✅ Genuine IT Products: Authentic enterprise IT hardware and technology products sourced through trusted suppliers and leading global brands.
🛠️ GNX Systems Support: Professional technical assistance before and after your purchase, helping you choose, deploy, and maintain the right IT solution.
🛡️ Product Warranty: Warranty coverage is provided according to the manufacturer’s terms, product condition, and applicable warranty policy.
🔍 Quality Assurance: Products are carefully checked and verified before dispatch where applicable to help ensure quality and reliability.
📦 Secure Packaging: Products are professionally packed to help ensure safe and secure delivery.
🚚 Free UAE Delivery: Free delivery across the UAE on eligible orders, subject to product availability, order value, product size, and delivery location.
🌍 Middle East Delivery: Reliable delivery to selected Middle East destinations, subject to shipping conditions, product availability, customs requirements, and destination.
🖧 Enterprise IT Solutions: We supply networking equipment, servers, storage, cybersecurity products, business computers, wireless solutions, and other professional IT infrastructure products.
🏆 Leading Technology Brands: Available products include solutions from trusted manufacturers such as Cisco, Dell, HPE, HP, Lenovo, Fortinet, Huawei, Juniper, Aruba, Ubiquiti, Ruijie, and other leading technology brands.
💼 Business & Bulk Orders: Competitive pricing is available for corporate customers, system integrators, IT resellers, contractors, and large-volume orders.
📋 IT Project Support: Our team can assist with product selection, compatibility, quantities, and technology requirements for business and enterprise IT projects.
🎧 Expert IT Consultation: Contact GNX Systems for professional guidance when selecting networking hardware, servers, storage, cybersecurity equipment, computers, and other enterprise technology products.

Need Help With Your Order?
Contact GNX Systems for product availability, technical information, compatibility, warranty details, bulk pricing, or project quotations.
