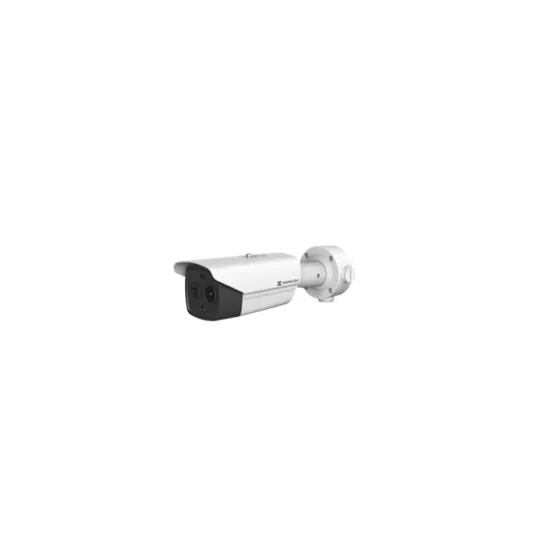

HM-TD2628T-10/Qa Hik Vision Thermal & Optical Bi-Spectrum Network Bullet Camera

HM-TD2628T-10/Qa Hik Vision Thermal & Optical Bi-Spectrum Network Bullet Camera — a networking equipment supplied by GNX Systems for enterprise and business IT infrastructure deployments in Dubai, UAE. Model/part reference: HM-TD2628T-10/QA. Contact GNX Systems for full technical specifications, compatibility details, warranty terms, and a competitive quote.

Key Specifications:
Thermal Module Image SensorVanadium Oxide Uncooled Focal Plane Arrays Resolution256 × 192 Pixel Pitch12 μm Spectral Range8 μm to 14 μm NETD< 40 mK (25°C, F1.0) Focal Length9.7 mm IFOV1.24 mrad Field of View18.0° × 13.5° (H × V) Min. Focusing Distance1.5 m ApertureF1.0 Digital Zoom×2, ×4 Optical Module Image Sensor1/2.7" Progressive Scan CMOS Resolution2688 × 1520 Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR Shuer Speed1 s to 1/100,000 s Focal Length8.0 mm Field of View39.4° × 22.1° (H × V) Aperture (Range)F1.6 WDR120 dB Image Effect Target ColorationYes. Supported in white hot and black hot mode. Illuminator IR DistanceUp to 30 m IR Intensity and AngleAutomatically adjusted Audible and Visual Alarm White Light RangeUp to 30 m Visual AlarmYes. White light alarm with adjustable flashing frequencies Audio alarm Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types) Smart Function VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) Temperature Range-20°C to 150°C (-4°F to 302°F) Temperature Accuracy± 8°C (± 14.4°F) General FunctionFire detection, smoking detection, sun-reflection filter Video and Audio Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM Network ProtocolsIPv4/IPv6,HP,HPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) Simultaneous Live ViewUp to 20 channels User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User SecurityUser authentication (ID and Password), MAC address binding, HPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering ClientiVMS-4200, Hik-Connect Web Browser Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + Interface Alarm Input2, alarm input (0-5 VDC) Alarm Output2, alarm output (alarm response actions configurable) Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage Audio Input 1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% Audio OutputLinear level, impedance: 600 Ω Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC General Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) Power Supply 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block PoE (802.3af, class 3) Power Consumption 24 VAC ± 25%: 0.8 A, Max.8.5 W 12 VDC ± 25%: 0.7 A, Max.8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W Working Temperature/Humidity Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less Protection Level IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection IK10-rated housing Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21") 1550 g (3.41 lb) Why Buy from GNX Systems? ✅ Genuine IT Products: Authentic enterprise IT hardware and technology products sourced through trusted suppliers and leading global brands. 🛠️ GNX Systems Support: Professional technical assistance before and after your purchase, helping you choose, deploy, and maintain the right IT solution. 🛡️ Product Warranty: Warranty coverage is provided according to the manufacturer's terms, product condition, and applicable warranty policy. 🔍 Quality Assurance: Products are carefully checked and verified before dispatch where applicable to help ensure quality and reliability. 📦 Secure Packaging: Products are professionally packed to help ensure safe and secure delivery. 🚚 Free UAE Delivery: Free delivery across the UAE on eligible orders, subject to product availability, order value, product size, and delivery location. 🌍 Middle East Delivery: Reliable delivery to selected Middle East destinations, subject to shipping conditions, product availability, customs requirements, and destination. 🖧 Enterprise IT Solutions: We supply networking equipment, servers, storage, cybersecurity products, business computers, wireless solutions, and other professional IT infrastructure products. 🏆 Leading Technology Brands: Available products include solutions from trusted manufacturers such as Cisco, Dell, HPE, HP, Lenovo, Fortinet, Huawei, Juniper, Aruba, Ubiquiti, Ruijie, and other leading technology brands. 💼 Business & Bulk Orders: Competitive pricing is available for corporate customers, system integrators, IT resellers, contractors, and large-volume orders. 📋 IT Project Support: Our team can assist with product selection, compatibility, quantities, and technology requirements for business and enterprise IT projects. 🎧 Expert IT Consultation: Contact GNX Systems for professional guidance when selecting networking hardware, servers, storage, cybersecurity equipment, computers, and other enterprise technology products. Need Help With Your Order? Contact GNX Systems for product availability, technical information, compatibility, warranty details, bulk pricing, or project quotations. ✉️ Sales: sales@gnxsystems.com ✉️ Support: support@gnxsystems.com GNX Systems Enterprise IT Infrastructure & Cybersecurity Solutions Dubai, UAE | Serving customers across the UAE and selected Middle East markets.
